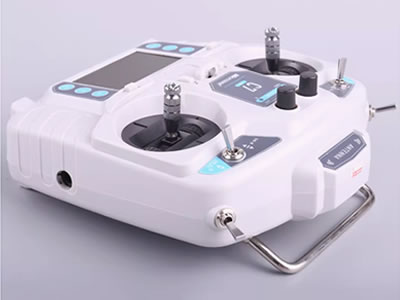

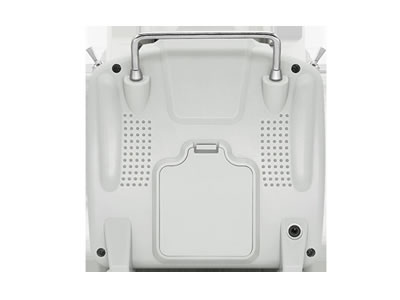

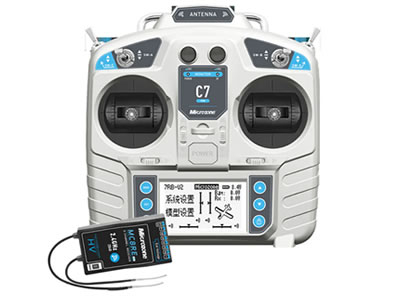

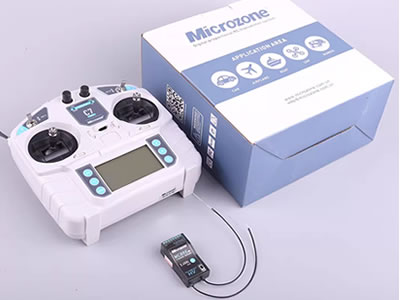

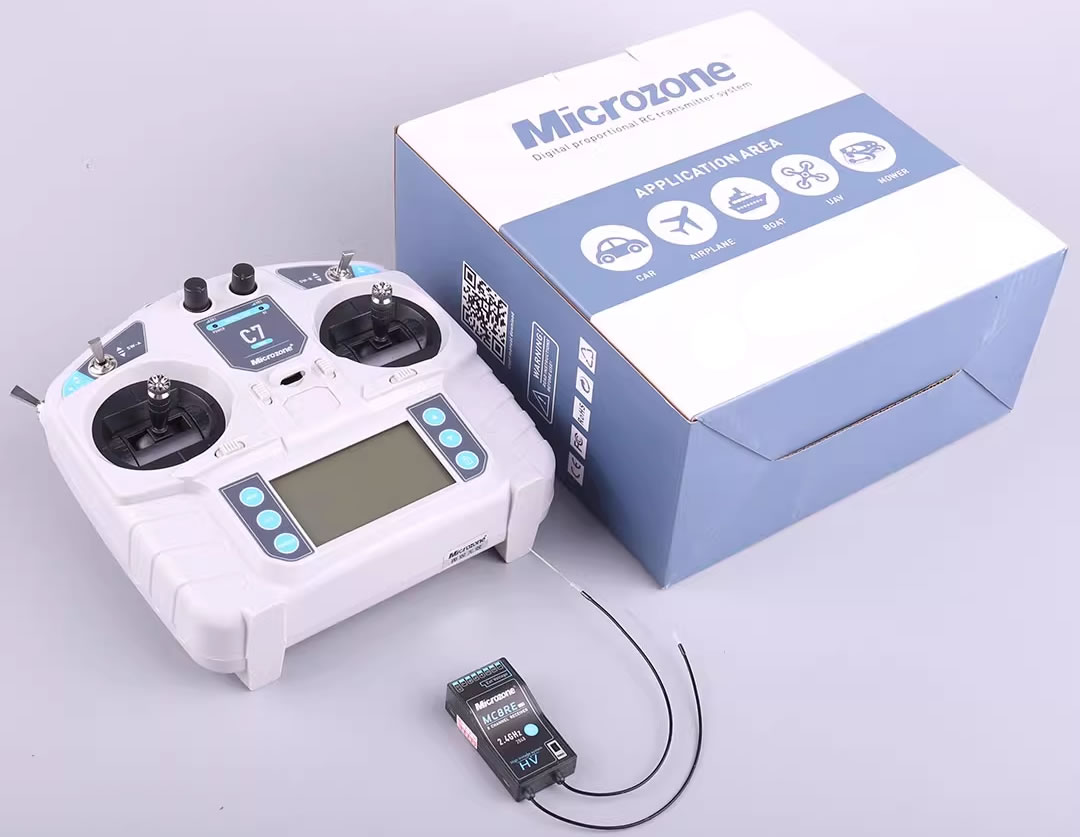

MicroZone MC7 Mini V2 2.4G Controller Transmitter with MC8RE V2 Receiver Radio System
1.it is RF range: RF range: 2401mhz-2479mhz
2.i Output signal: 6-way PWM signal and 1-way SBU signal.
3.it requires 6V 1.5AA * 4 battery
it is made in China Microzone Technology Co.,Ltd,100% original,
Brand name: Microzone(China Brand)
Item Number: MicroZone MC7 mini V2 With MC8RE Receiver Radio System
Number of channels: 7
Color: Silver
Applicable models: fixed wing aircraft, unmanned aerial vehicles, vehicles and ships.
RF range: 2401mhz-2479mhz
RF power: less than 100MW
Working current: below 120mA
Working voltage: 4.5-8.5V
Modulation mode: FSK
Sensitivity: 1024
Output signal: 6-way PWM signal and 1-way SBU signal.
Analog and external power supplies (not exceeding 8 5) : Yes.
Low voltage alarm mode: LED indicator and buzzer alarm simultaneously.
Power supply: 6V 1.5aa * 4
Adopt the latest FHSS model that meets European standards.
Package size: 215mm * 105mm * 220mm
Weight (gross weight): 550G
Receiver specifications:
Model: MC8RE-V2
Color: brown transparent
Applications: fixed wing, multi-axis, car, boat
Channel output: 8 PWM signals, 1 external voltage input
Frequency band: 2401MHz-2478MHz
Receiving distance: >1000m
Receiver power supply voltage: DC: 4.5-6V
SBUS signal: not supported
Frequency binding method: contact frequency
Restoration Performance: Recover Signals Fast
Failsafe setting: support
Support remote control: C7-MINI, 8B-MIN1, Classic-10
Antenna type: external dual antenna
Antenna length: 150mm
Dimensions (length, width and height): 46*25*14(mm)
Weight: 10g
